Product Details

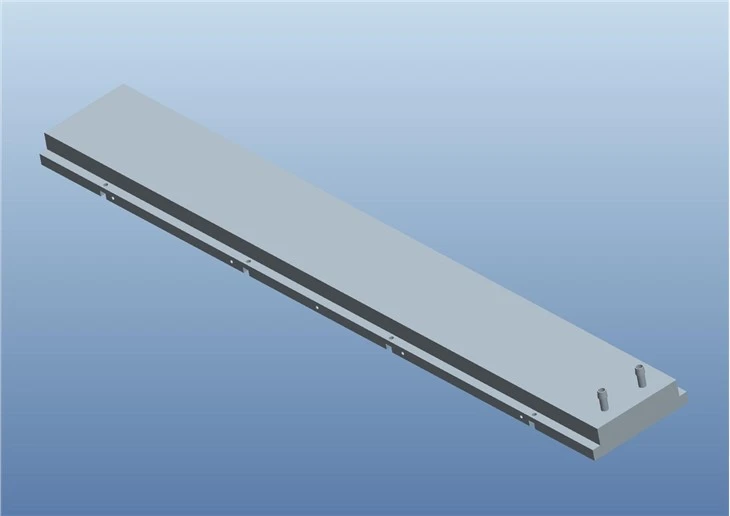

| Item Name | Water Cooling Plate Heat Sink | ||
| Model Number | KX-22004 | ||
| Materials | Aluminum 6063 / 6060 / 6001 | ||
| Surface finish | black / silver anodized or as your requirement | ||
| Packaging | Strong cardboard with wooden sticks or as your requirement | ||
| Delivery time | Within 12 Working Days | ||
| Origin | Foshan, China | ||
| Service | OEM | ||
Advantages of Water Cooling Plate Heatsink
Water cooling heat sinks, recognized as a mature cooling technology, have found widespread applications in various industrial sectors, notably in the cooling systems of automobiles and aircraft engines. This characteristic empowers water cooling heat sinks to deliver superior cooling effects, concurrently ensuring adept noise control.
Moreover, integrating aluminum into water cooling heat sinks, especially water cooling plate, contributes to enhancing their effectiveness in maintaining a stable operating temperature and sound heat dissipation.
Effective Heat Dissipation
Customizable Cooling Solutions
Saving Space
Silent Operation
Friction stir welding (FSW) is a solid-state joining process. FSW works by using a non-consumable tool, which is rotated and plunged into the interface of two workpieces. The tool is then moved through the interface and the frictional heat causes the material to heat and soften. The rotating tool then mechanically mixes the softened material to produce a solid-state bond.
FSW is capable of joining aluminum alloys, copper alloys, titanium alloys, mild steel, stainless steel and magnesium alloys.
01
Superior Strength
FSW produces joints with mechanical properities often superior to the base material, ensuring high structural integrity of the cooling plate.
02
Excellent Seal Quality
The process creates a hermetic seal, crucial for preventing coolant leakage in liquid cooling systems.
03
Minimal Distortion
As a solid-state process, FSW introduces less heat into the workpiece compared to fusion welding methods, resulting in minimal distortion and residual stress.
04
No Filler Material
FSW doesn't require filler material, reducing material costs and eliminating concerns about filler compatibility.
Some options you can choose to customize liquid cooling plate
01
02
Using heating rod type only to increase liquid flow rate
How to evaluate our liquid cooling plates
| NO. | Test Name | Experimental Conditions | Judgement | |
| 01 |
Air leak testing |
1) Fill the test piece with dry compressed air to 205kPa±5kPa 2)hold pressure for 120s. |
air leakage rate≤2. 0mL/min | |
| 02 |
Pressure Cycle Test |
Initial Condition: The test is filled with aqueous ethylene and glycol solution, then keeping the liquid and ambient temperature are the same
Inlet Pressure Fluctuation: 1) 50kPa→200kPa→50kPa→200kPa 2) 200kPa→50kPa→200kPa
the Pulse Frequency: 1Hz±0.5Hz
The Cycle: 1) 90,000 times when 80℃ 2) 10,000 times when -20℃ |
Testing the sealing of the test piece at the end of the test | |
| 03 |
Burst Pressure Test |
Fill the test piece with water, pressurise 100kPa at a time and hold pressure for 60s, pressurise to a maximum of 800kPa. |
Should withstand a pressure of 800kPa without rupture | |
| 04 |
Temp Cycle Test |
Initial Condition: Apply pressure on the test piece to make the pressure reaches 205kPa
Temperature Fluctuation the ambient and aqueous solution of ethylene glycol Temperature 80℃→-40℃→80℃→-40℃.
The Cycle: Regular change, cycle 300 times |
Testing the sealing of the test piece at the end of the test | |
| 05 |
Flatness Test |
\ | Maintain Flatness within 3-2mm. | |
| 06 |
Salt Spray Test |
Initial Condition: 1) 50g/L sodium chloride solution 2) The pH value: 6.5 - 7.5 3) temperature of the test chamber: 35℃±2℃ 4) temperature of the solution: 47℃±2℃
Testing Procedure: Spray continuously for 30min, then keep standing for 90min
The Cycle: Regular change, cycle 300 times |
Testing the sealing of the test piece at the end of the test | |
| 07 |
Vacuum Test |
Testing Procedure 1) Withdraw the air inside the specimen 2) The absolute pressure inside the test spciemen shall be reduced To 3kPa in 30 minutes. |
Flatness Test | |
| 08 |
Corrosion Test |
Testing Procedure 2) Mix the aqueous ethylene glycol solution and the corrosive solution in 1:1 ratio. 4) Operate the internal corrosion test device at a temperature of 90°C.
The Cycle 1) Duration: Run the test device for 76 hours continuously. 2) Interruption: Stop the device for 8 hours after every 76-hour run. 3) Repetition: Repeat the above cycle 14 times. |
Burst pressure test | |
Watch as a regular ice cube remains largely unchanged when placed at room temperature. However, when the same ice cube is placed on our liquid cooling plate, it rapidly melts before your eyes. Our liquid cooling plate excels at both rapid heat dissipation and absorption, ensuring the timely removal of excess heat while effortlessly melting ice in an instant.
With over 15 years exporting experience, Kaixin Enterprise Ltd.is a professional aluminum products manufacturer with headquarter in HK and branch office and factory in Foshan. ISO9001 and IATF16949 Certifications factory, thermal solution provider, We provide aluminum heat sink and CNC machining products.Our goal is to help our customers lower production costs at high quality and high volumes.
Completed
and continuing Projects
Aluminum Manufacturing Industry
High Precision Machining Centers
Per Month production capability
Why you can choose kaixin as your partner
Professional Expertise with Years of Experience in Thermal Management
Kaixin has specialized in custom aluminum heat sinks and water-cooling plates for many years, accumulating extensive OEM experience. Whether for high-power LEDs, power modules, or industrial cooling systems, we provide mature, reliable solutions. Our long-term industry partners span the globe, ensuring projects are delivered smoothly and on time.
01
Strict Quality Management for Stability and Reliability
We maintain a comprehensive quality management system covering everything from raw material procurement and production to final inspection. Even in large-scale production, we consistently ensure dimensional accuracy and stable performance, helping clients reduce manufacturing risks.
02
Responsive Service to Meet Customer Needs Quickly
Kaixin supports customized design and technical optimization. With a professional engineering team, we respond rapidly to design changes, prototype fabrication, and technical consultation, ensuring your projects progress according to schedule.
03
Strong Supply Capability to Support Long-Term Collaboration
Our well-equipped production lines and capacity planning allow Kaixin to reliably meet large-scale order demands. From small-batch prototype development to mass production of tens of thousands of units per month, we ensure stable supply and on-time delivery.
04
Focus on Collaborative Value to Help Customers Succeed
We don't just deliver products-we focus on your overall application success. Kaixin provides optimization recommendations and after-sales support to enhance your final product performance and market competitiveness. Choosing Kaixin means selecting a reliable partner, not just a supplier.
