With more than 15 years of experience and a team of more than 88 professionals. Kaixin Aluminum produces a full range of aluminum heat sinks, CNC machining parts and metal stamping. Besides, our Auto-anodizing production line is another milestone for our higher quality standard.
Discover the world of Kaixin Aluminum:
The aluminium workpiece in turn become greater corrosion resistant and weathering after anodising. We provide various colour options for custom heat sink design. Our auto-anodising production line ensures colour symmetry, dot-free and premium finishing quality with designed hangers which can adapt to various shapes of products.

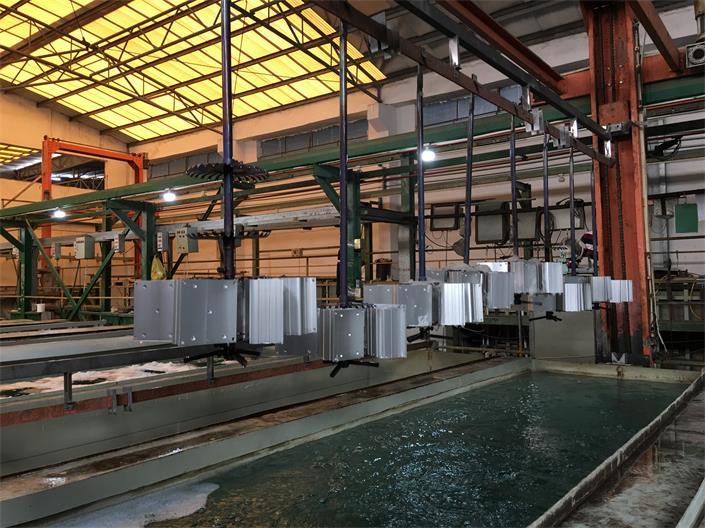

Our Auto-anodizing production line——quality assurance and cost efficiency.
A automatic production line for anodic oxidation, its characteristic is: including the operating console and linear multiple tank.
According to the configuration described in multiple tub including from front to back, in turn, set to tank, ash slot, slot, polishing groove, the neutralizing tank, the oxidation tank, dyeing tank and closed slot, and are set up between two adjacent tub has at least one cleaning trough, a closed set has at least one cleaning tank after tank; The feed ports of the oil removing tank, ash removing tank, matt tank, polishing tank, neutralization tank, oxidation tank, dyeing tank and closed tank are respectively connected to the corresponding batching tank through the feed pipe; The feed pipe is provided with a feed pump for adding the ingredients in the batching tank into the corresponding tank body.

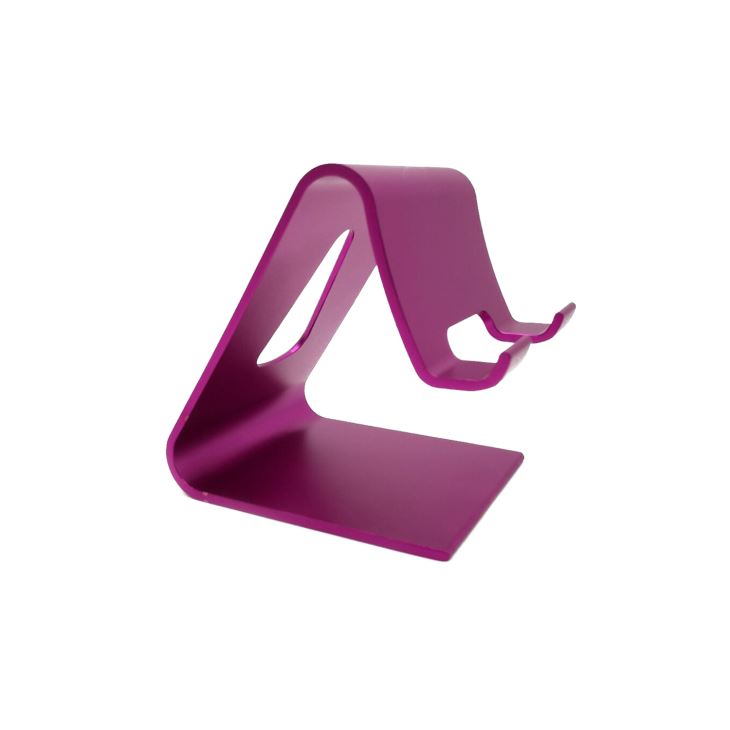

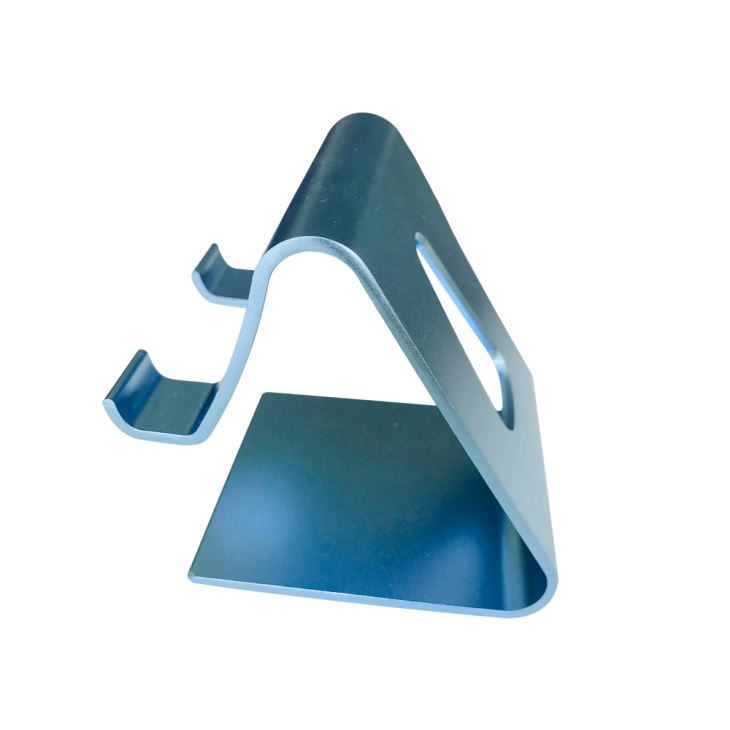

Some samples of our anodizing colour options:

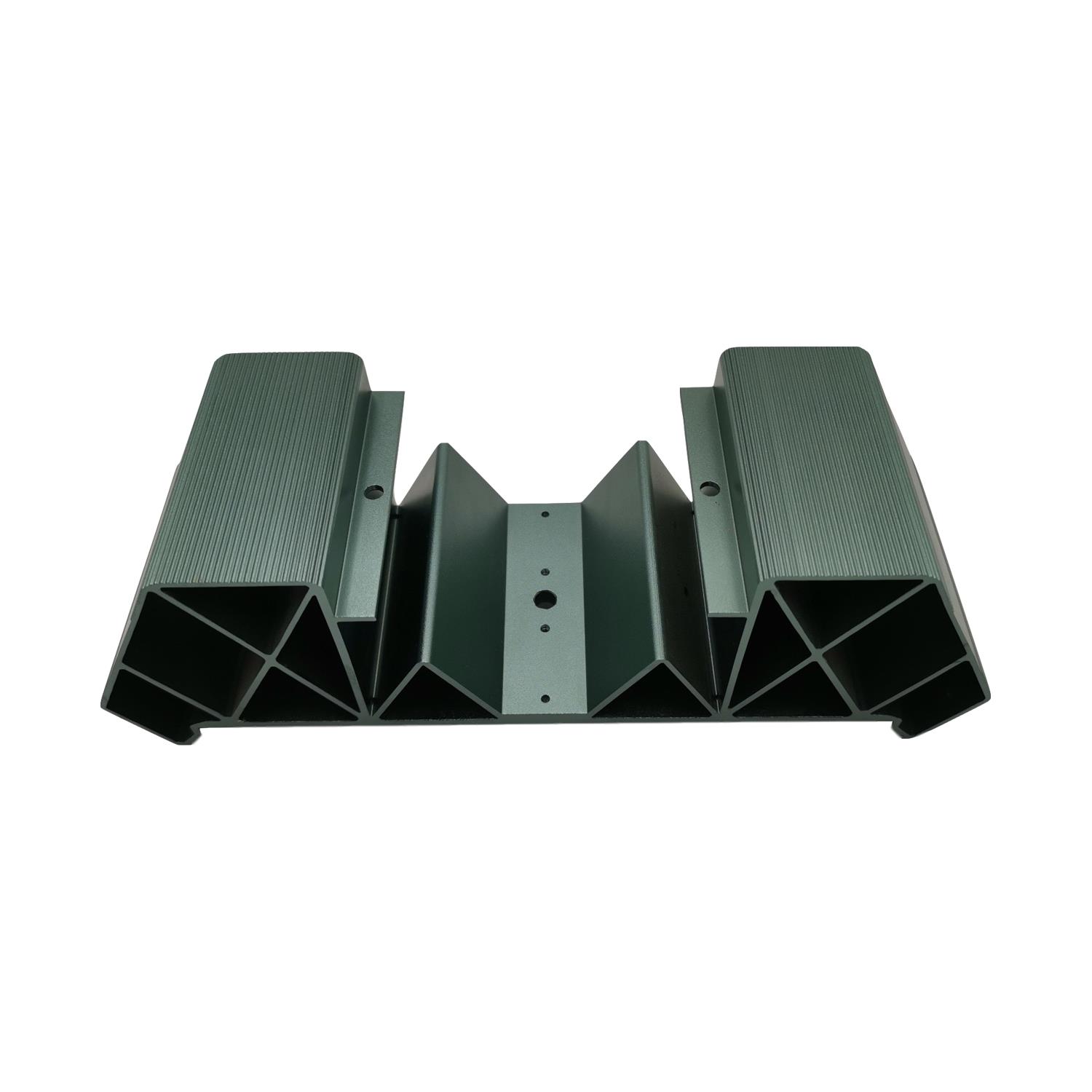

 Black anodize |

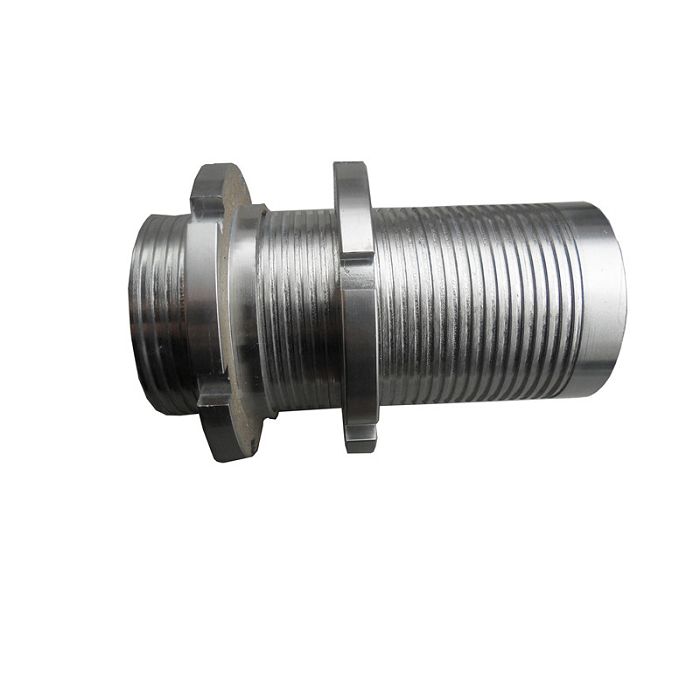

|  Silver anodize |

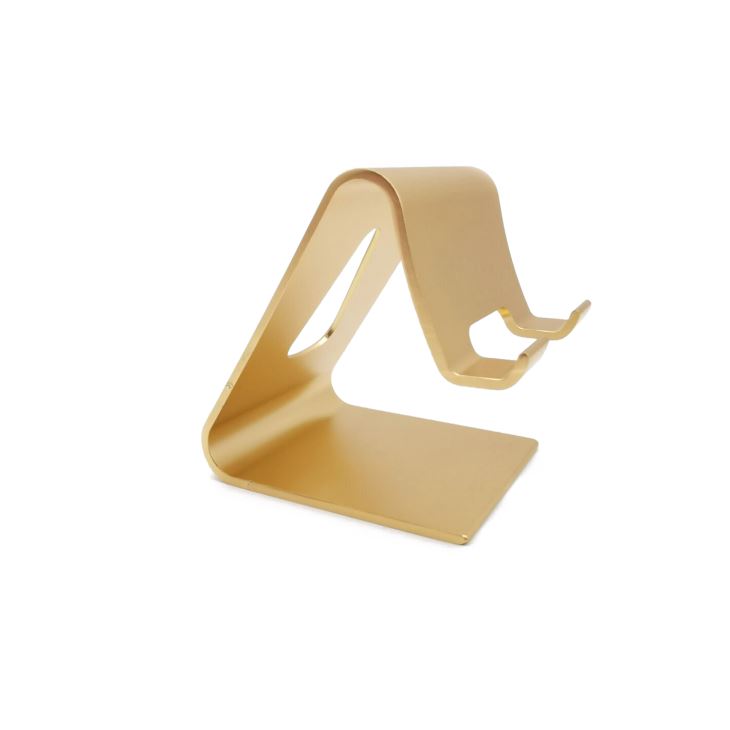

Rose gold anodize
|
|
|
The automatic anodic oxidation production line also includes a pair of guide rails mounted on the upper two sides of the tank along the straight extension direction of the tank , a navigation vehicle mounted between the two guide rails and a navigation vehicle driving device used to control the navigation vehicle to move back and forth along the guide rails . The two lower ends of the vehicle are respectively connected with vertical lifting poles , and the two vertical lifting poles are connected with horizontal and transverse horizontal lifting poles.
On the side of each vertical lifting pole, there is a lifting guide which is useful for lifting horizontal lifting poles relative to vertical lifting poles. The vehicle is provided with a retractable lifting belt for driving a horizontal lifting pole to lift on the lifting guide rail; The lower part of the horizontal lifting pole is provided with a horizontal and transverse conducting rod for hanging the parts to be processed, and the lower part of the horizontal lifting pole is also provided with a supporting claw for lifting the conducting rod horizontally. The upper edge of the tank body of the oxidation tank is fixedly provided with an aluminum frame fitting with the inner ring of the tank body. The two sides of the tank of the oxidation tank are also provided with a conductive seat which is arranged along the straight extension direction of the tank to support the conductive rod and is connected with the conductive rod . The charging pump and the vehicle driving device are connected with the control device arranged on the operation console.
Kaixin Aluminum products with anodizing
1. General process:
Aluminum workpiece hanging fixture/ degreasing/ washing /alkali corrosion washing/ light washing /anodic oxidation washing /deionizing washing /dyeing /electrolytic coloring washing/ deionizing washing sealing washing hanging fixture
2. Process flow of high-brightness aluminum products:
Aluminum workpiece mechanical polishing/ degreasing washing neutralization washing chemical or electrochemical polishing /washing /anodic oxidation washing /deion washing/ dyeing or electrolytic coloring washing/ deion washing /sealing washing /mechanical brightness

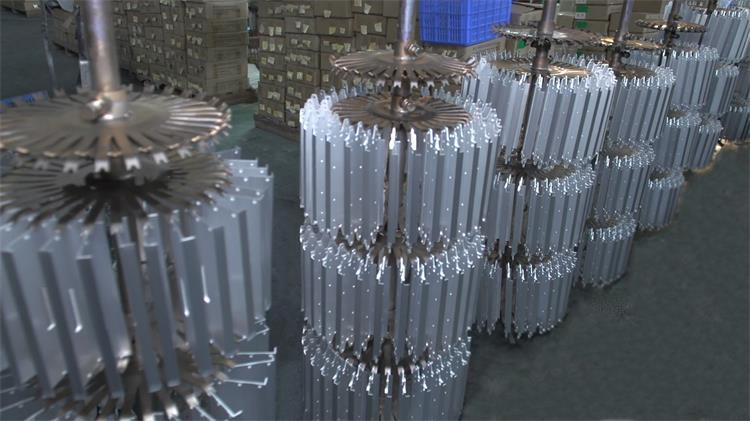

Kaixin products on the hangers
The aluminum heat sink ready to do the anodizing |

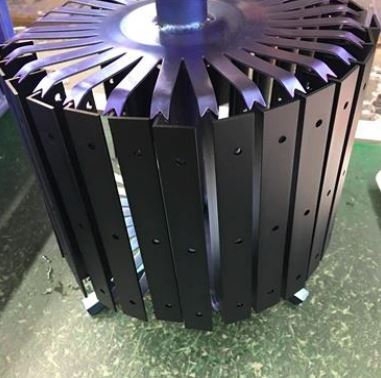

matt black anodize--finish products |
